Reversing NVIDIA’s CVE-2026-24190: How a Kernel Flaw Put Enterprise AI Clusters and Workstations at Risk

Executive Summary: Bypassing Boundaries in Enterprise AI Infrastructure

The massive global adoption of artificial intelligence (AI) and large language models (LLMs) has fundamentally rewritten the enterprise threat landscape. Modern high-compute bare metal clusters, cloud nodes, and developer workstations now routinely host dense data science stacks running frameworks such as TensorRT LLM, PyTorch, and deep CUDA execution layers. To process complex matrix calculations efficiently, low-privilege user mode tasks require direct pipelines straight to the underlying graphics acceleration hardware.

This architecture introduces an incredibly high-value target: the Windows Kernel Core Display Driver (nvlddmkm.sys). Operating in Ring 0, this binary serves as the absolute root of trust and hardware orchestration layer for NVIDIA Turing, Ampere, Ada Lovelace, and Blackwell microarchitectures. Because user mode workloads routinely submit complex user-controlled structures across the driver boundary to leverage compute rings, an input validation breakdown exposes the underlying host kernel directly. In multi-tenant infrastructure or virtualized environments with hardware passthrough, these flaws may create a host compromise path when affected GPU interfaces are exposed across virtualized or multi-tenant environments.

Lab Setup & Differential Scope

To isolate explicit security logic changes while effectively mitigating compiler optimization noise, variations in register assignment, or dead code translation deltas, our differential patch pipeline targets two enterprise R595 branch builds released just days apart.

• Build 1: Vulnerable Baseline (Primary). Compiled as Build 596.21 on April 16, 2026.

• Build 2: Patched Remediation (Secondary). Compiled as Build 596.36 as the May 2026 Security Baseline.

Using automated structural diffing engines (BinDiff) paired with manual Ghidra decompilation auditing, we conducted a bounded analysis isolating 35 complex functions. Out of these 35 targeted driver routines, we verified 19 distinct security critical fixes. This analysis successfully isolated security relevant logic changes across 54.2% of the targeted driver subsystem functions.

While our initial differential pipeline successfully mapped out the entire patch footprint, including the layout constraint fixes in CVE-2026-24193, this post deliberately drills down into three specific case studies that represent the most complex architectural threat vectors for multi-tenant environments.

Systemic Architectural Verification - The 0x240d Token Gatekeeper Pattern

The Vulnerability Mechanics

Analyzing the unpatched driver reveals a widespread input validation failure across 14 different IOCTL sub dispatch handlers (sub_140CFE060, sub_140D02800, sub_140D09100). When a user-mode application interfaces with these handlers, the driver parses complex input layouts and length fields prior to verifying packet authenticity. By interacting with these unauthenticated execution paths, a local adversary can expose raw internal kernel sub-routines to unvalidated user-controlled structures, expanding the driver's exploitable attack surface directly within the Ring 0 context.

Disassembly Remediation & Verification Pipeline

The patched driver fixes this security flaw by adding a mandatory entry point check to intercept incoming requests before any data parsing happens. This check relies on a unique gatekeeper token: the magic signature value 0x240d, which serves as a static structural validation constant used by the vendor's kernel engine to authenticate requests originating from user-mode API clients. If an incoming packet lacks this exact signature constant, the driver immediately flags the request as unauthenticated or malformed and blocks execution. The assembly validation routine performs the following precise steps:

1. The routine reads two separate 16-bit values directly from the user structure at offsets +0x4 and +0x6.

2. It shifts the high-order bits left using an explicit SHL instruction and merges the values into a single 32-bit register using a bitwise OR operation.

3. It validates the final 32-bit integer against the hardcoded magic signature constant using a CMP EDX, 0x240d comparison instruction.

4. Triggers a JNZ conditional jump if the input data fails to match, terminating execution and routing the bad request safely into an early error bailout block.

Note that while the raw assembly executes these separate side-by-side 16-bit reads, Ghidra’s decompiler engine automatically synthesizes this sequence into a single 32-bit dword pointer access due to standard little endian memory layout consolidation.

Reverse Engineering Visual Proofs

Figure 1. BinDiff graph view showing the newly injected entry block (highlighted in yellow) executing the CMP EDX, 0x240d signature check to protect downstream execution paths.

Figure 2: Ghidra Decompiler C representation verifying the signature boundary constraint via an explicit if (iVar4 == 0x240d) conditional constraint.

Case Study 1: Execution Critical Pointer Slot Collision & Control Flow Instability (CVE-2026-24190) - sub_1418AA200

Technical Vulnerability Mechanics

Static tracking of the unpatched routine sub_1418AA200 isolates a validation failure inside the device extension structure. The unpatched driver relies on a loose mask value of 0x7f8ffe0U, allowing multiple different user-mode inputs to map directly to the same pointer slot at offset +0x508. The patched binary eliminates this collision vector by shifting to a restrictive 0x3f8fc00U mask paired with a secondary verification check against a 0xb8000000U constant. Crucially, as isolated in the decompiler output, the validation split manages two distinct tracking variables: the raw scalar input index (evaluated via uVar2 to isolate the specific 0x1a code execution path), and a distinct bit vector index variable (bVar5). The protective mask values are applied directly against the left shifted bit vector representation populated via bVar5 rather than evaluating the raw scalar index itself. This dual-variable constraint sharply reduces the input attack surface to ensure clean data segregation.

This behavior creates a severe memory data-collision vector. By passing a sequence of crafted requests, a low-privilege local application can trigger a collision state, corrupting execution-critical pointer tracking fields shared across concurrent threads. The engineering solution completely abandons the legacy, shared pointer tracking slot at offset +0x508 for this subset of transactions, shifting the entire routing framework to the isolated structure offset at +0x510. When the driver later references this newly segregated tracking slot, the potential for cross-thread structural corruption is eliminated, fully neutralizing the control flow instability vectors directly inside the Ring 0 context.

Disassembly Remediation & Verification Pipeline

Analyzing the patched routine sub_1418AD2B0 reveals the exact structural modification implemented to block this pointer slot collision condition. The secure control flow graph introduces a dedicated bitwise isolation layer designed to trap and isolate the volatile input index 0x1a. The hardening logic works through the following precise steps:

1. The driver isolates incoming execution codes using a targeted bitwise check instruction: if ((uVar2 & 0x1f) == 0x1a).
2. If this explicit match condition evaluates to true, the driver intercepts the pointer-routing engine and safely diverts the volatile function pointer write.
3. The pointer is written to an isolated structure slot located at offset +0x510, leaving the shared +0x508 slot untouched.
4. This physical data segregation effectively mitigates the observed collision condition, ensuring that unauthenticated concurrent writes can no longer cross execution contexts.



Reverse Engineering Visual Proofs

Figure 3. Ghidra Decompiler view inside the unpatched sub_1418AA200 function showing unfiltered execution data flowing directly to the shared pointer slot at offset +0x508.

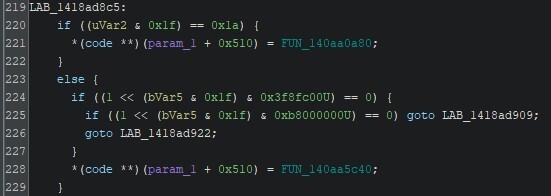

Figure 4. Patched control logic inside sub_1418AD2B0 confirming the bitwise isolation of index 0x1a to a dedicated structure offset at +0x510.

Case Study 2: Missing Object State & Lifecycle Validation (CVE-2026-24190) - sub_140336B50

Technical Vulnerability Mechanics

Static tracking of the unpatched handler sub_140336B50 exposes a critical flaw in how the driver validates object-tracking lifecycles. When handling incoming user-mode requests, the unpatched binary attempts to verify whether a tracking object is fully active and safe to process. However, the driver relies on a loose, shallow condition that evaluates a single byte at structure offset +0x173c.

Because this check is entirely single-layered, it fails to account for intermediate states, such as when an object is initialized but not yet safe to call, or when it has already been scheduled for termination. This missing state validation creates a dangerous object lifecycle vulnerability window. A low-privilege application can exploit this narrow validation window to interact with unstable, uninitialized, or orphaned kernel structures. By forcing the driver to process objects trapped in intermediate lifecycle phases, downstream routines are exposed to invalid object lifecycle states that may result in stale references, unsafe object access, or memory corruption conditions.

Disassembly Remediation & Verification Pipeline

A structural analysis of the patched version inside sub_140336B40 shows exactly how the driver blocks this attack surface. To maintain structural parity between the unpatched and patched routines, note that decompiler allocations local_88 and lVar1 both map to the base address of the same internal tracking structure. The updated driver shifts validation completely away from the original byte at offset +0x173c within this execution path, implementing a rigid, compound object lifecycle validation layer instead. Before allowing execution to branch to the core data parsing logic, the assembly routing performs the following precise steps:

1. The routine checks two specific status flags: offset +0x173d verifies that the object is fully initialized, while offset +0x1734 ensures it is not currently being deleted or freed.
2. It shifts and aggregates these state flags to map a precise logical matrix of the object's active lifecycle state.
3. It validates the combined flags against a compound requirement condition to guarantee the target structure is neither uninitialized nor in a pending free status.
4. If any single flag validation condition fails, a conditional branch instruction immediately aborts the sub dispatch execution graph, effectively isolating downstream routines from interacting with unvalidated object states.



Reverse Engineering Visual Proofs

Figure 5. Ghidra Decompiler representation of the unpatched sub_140336B50 routine showing the shallow single byte activation verification path at offset +0x173c.

Figure 6. Patched control logic inside sub_140336B40 showing the newly deployed multi-flag compound lifecycle check enforcing strict state constraints.

Case Study 3: Kernel Resource Lock Leak (CVE-2026-24182) - sub_140D3A780

Technical Vulnerability Mechanics

Static analysis of the unpatched handler sub_140D3A780 reveals a classic synchronization flaw during error handling. When processing concurrent user mode requests, the driver acquires an ERESOURCE kernel lock to safely read and write shared tracking structures. However, if the driver encounters malformed data during this process, it triggers an early bailout sequence and jumps directly to an exit block.

The critical flaw lies in this error path: the unpatched driver returns execution to the OS without explicitly releasing the ERESOURCE lock. This behavior creates a permanent resource lock leak. By intentionally spamming the driver with malformed requests that trigger this specific error path, a low-privilege user-mode application can deliberately exhaust the kernel's synchronization locks. When an ERESOURCE lock is held permanently, any other threads attempting to access that shared structure are blocked indefinitely. In high-performance enterprise compute nodes, this resource leak exhausts available synchronization paths, leading to severe system instability and a clear denial-of-service (DoS) condition.

Disassembly Remediation & Verification Pipeline

A structural analysis of the patched routine sub_140D3B780 highlights the defensive cleanup logic implemented by the developers to prevent this resource exhaustion. The updated execution flow intercepts the error bailout path and forces it through a dedicated cleanup wrapper before returning. The assembly routing performs the following precise steps:

1. The routine detects an invalid input state and initiates the standard error bailout sequence.
2. Instead of returning immediately upon error, the execution graph branches into a newly injected cleanup block.
3. The driver passes the lock pointer to an internal function (FUN_141945920) that runs the standard ExReleaseResourceLite kernel API.
4. The lock is safely released back to the OS pool, and the driver exits safely, mitigating the identified denial of service condition.



Reverse Engineering Visual Proofs

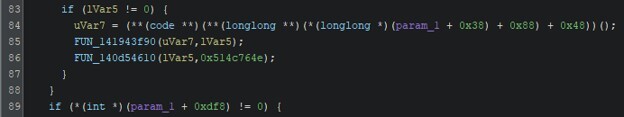

Figure 7. Ghidra Decompiler view of the unpatched sub_140D3A780 error path, showing the execution flow exiting without freeing the active synchronization lock.

Figure 8. Patched control logic inside sub_140D3B780 highlighting the newly injected cleanup wrapper calling ExReleaseResourceLite before the function exits.

Operational Mitigation & Strategic Conclusion

Enterprise Remediation Guidelines

• Deploy Immediate Driver Updates: Run the official vendor installer package across all developer workstations and bare metal clusters to update the core Windows Kernel Core Display Driver binary (nvlddmkm.sys). Enterprise administrators must ensure systems running modern Turing, Ampere, Ada Lovelace, or Blackwell endpoint architectures are upgraded to version 596.36 and above. Environments maintaining legacy or long-term support (LTS) data center node lines must ensure drivers are updated to version 582.53 and above, representing the parallel remediation baseline designated within the vendor's official security advisory scope to fully eliminate the active privilege escalation and denial of service vulnerabilities.

• Enforce Driver Blocklist Policies: Implement the Microsoft-recommended driver blocklist via system policies to prevent attackers from loading older, signed, vulnerable driver versions in Bring Your Own Vulnerable Driver (BYOVD) attacks.

• Implement IOCTL Telemetry Monitoring: Configure security monitoring systems to detect and flag unexpected or unauthenticated IOCTL dispatch calls targeting direct kernel hardware allocation structures.

• Restrict Container Access Boundaries: Enforce strict access control limits on user-mode containers interacting with GPU acceleration layers to decrease the initial footprint available for local threats to reach Ring 0.



Strategic Infrastructure Conclusion

The differential analysis of CVE-2026-24190 and CVE-2026-24182 highlights a major challenge in modern kernel security. With enterprise environments relying heavily on AI infrastructure and dense data science stacks, the graphics driver is no longer just a basic display component. It has become a central security boundary operating with unrestricted kernel privileges. Input validation failures inside these complex routines do not just compromise a single localized process but instead, expose shared host environments to cross-workload security risks via direct hardware passthrough paths.

Fixing these security gaps through targeted index masking, multi-flag object state checks, and explicit error path cleanup wrappers is essential for defense in depth engineering. Input validation limits must perfectly match the underlying kernel structure layouts to keep the core operating system secure. By maintaining strict code auditing and deploying structural logic isolation layers, developers can successfully protect critical hardware infrastructure against control flow instability and system availability disruption.
